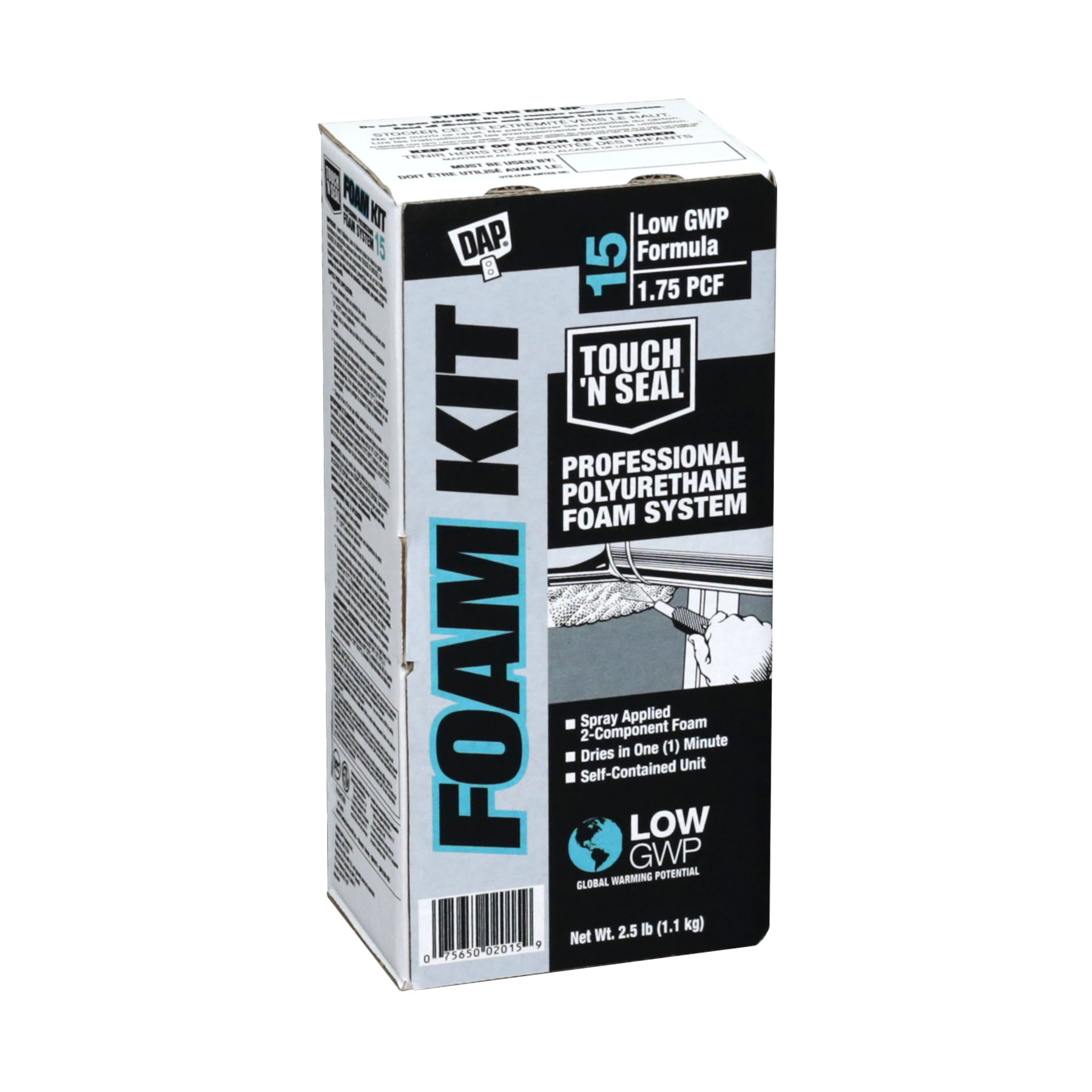

Touch 'n Seal 15 FR

Touch 'n Seal 15 FR

  • R-Value - 5.5 per inch
  • Yield - Approx. 15 board feet
  • Density - 1.75 +/- 0.2 per cubic feet
  • Use all contents within 24 hours of initial dispensing
  • Pre-connected hoses for fast easy setup
  • Foam expands 30 times
  • Dries in less than one minute
  • Clear, color coded hoses
  • Environmentally sage and disposable
  • All necessary components included

Click Here For Setup and Application Video



ALWAYS review and follow the directions provided in your foam kit. The below instructions are a general overview, meant to accompany the reference photos. ENSURE you follow all safety precautions including wearing protective eyewear and gloves.

Foam Kit 15 Assembly Instructions: (Click pictures to enlarge)

  • Tear open the back of the box (Figure 1)


  • Without forcing, remove hoses and applicator to full length (Figure 2)


  • Ensure gun safety is ON (roller is locked toward end of applicator)


  • Pull yellow tab to remove black plastic valve lock. Discard. (Figure 3)


  • Activate valves by pulling black strap up and insert strap into slit (marked in yellow) on back of box. Hoses will partially fill with chemicals.


  • Hold unit UPSIDE DOWN, move roller to “ON” position (towards hoses) and dispense foam. Adjust roller to increase/decrease flow.


  • If dispensing is stopped for more than 30 seconds, replace nozzle with the extra provided.


  • Foam can be trimmed, painted, sanded or plastered after curing completely.



2 component foam kit use guideines
Figure 1

2 component foam kit use guideines
Figure 2

2 component foam kit use guideines
Figure 3
